Product Summary

The TAS5711 is a 20-W, efficient, digital audio power amplifier for driving stereo bridge-tied speakers. One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The TAS5711 accepts a wide range of input data and data rates. A fully programmable data path routes these channels to the internal speaker drivers. The TAS5711 is used in Television, iPod Dock, Sound Bar.

Parametrics

TAS5711 absolute maximum ratings: (1)Supply voltage:–0.3 to 3.6 V; (2)Input voltage: –0.3 to 4.2 V; (3)OUT_x to PGND_x: 32 V; (4)BST_x to PGND_x: 43 V; (5)Input clamp current, IIK: ±20 mA; (6)Output clamp current, IOK: ±20 mA; (7)Operating free-air temperature: 0 to 85 ℃; (8)Operating junction temperature range: 0 to 150 ℃; (9)Storage temperature range, Tstg: –40 to 125 ℃.

Features

TAS5711 features: (1)20-W Into an 8-Ω Load From an 18-V Supply; (2)Wide PVDD Range, From 8 V to 26 V; (3)Efficient Class-D Operation Eliminates Need for Heatsinks; (4)One Serial Audio Input (Two Audio Channels); (5)2.1 Mode (2 SE + 1 BTL); (6)2.0 Mode (2 BTL); (7)Single-Filter PBTL Mode Support; (8)I2C Address Selection Pin (Chip Select); (9)Supports 8-kHz to 48-kHz Sample Rate(LJ/RJ/I2S).

Diagrams

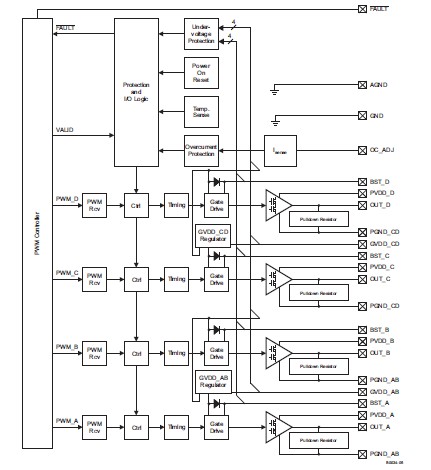

TAS5711 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TAS5711
TAS5711
Other

Data Sheet
Negotiable
TAS5711PHP
TAS5711PHP
Texas Instruments
Audio Amplifiers 2-Channel Dig Audio Amp
Data Sheet
0-1: $3.72
1-25: $3.44
25-100: $3.16
100-250: $2.89

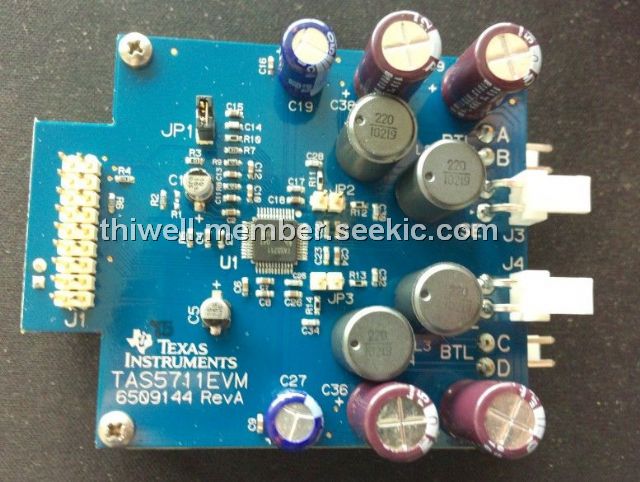

TAS5711PHPEVM
TAS5711PHPEVM
Texas Instruments
Audio IC Development Tools TAS5711PHP Eval Mod
Data Sheet
0-1: $134.70
TAS5711PHPR
TAS5711PHPR
Texas Instruments
Audio Amplifiers 2-Channel Dig Audio Amp
Data Sheet
0-650: $2.18
650-1000: $1.90
1000-2000: $1.84
