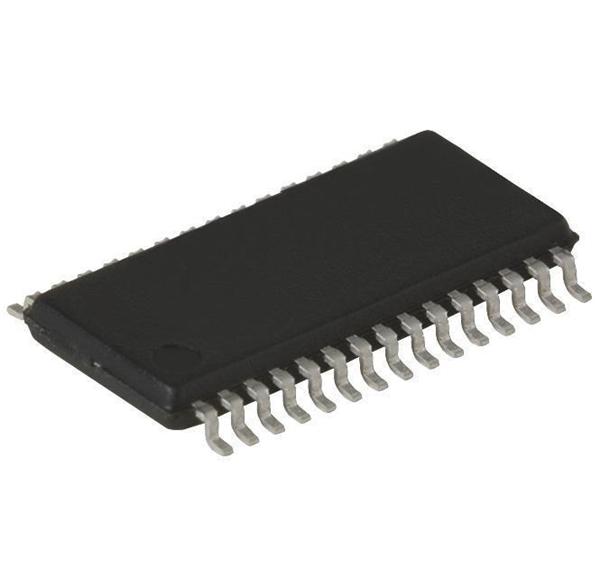

BQ29330DBT

Product Summary

The BQ29330DBT is a 2-, 3-, or 4-cell lithium-ion battery pack full-protection analog front end (AFE) IC that incorporates a 2.5-V, 16-mA and 3.3-V, 25-mA low dropout regulator (LDO). The BQ29330DBT also integrates an I2 C-compatible interface to extract battery parameters such as battery voltage, individual cell voltages, and control output status. Other parameters such as current protection thresholds and delays can also be programmed into the BQ29330DBT to increase the flexibility of the battery management system. The applicaitons of the BQ29330DBT include Notebook Computers, Medical and Test Equipment and nstrumentation and Measurement Systems.

Parametrics

BQ29330DBT absolute maximum ratings: (1)Supply voltage range (VCC, BAT): – 0.3 to 34V; (2)Input voltage range, (VC1, VC2, VC3, VC4, PACK, PMS): – 0.3 to 34V; (VC5): – 0.3 to 1.0V; (SRP, SRN): – 1.0 to 1.0V; (VC1 to VC2, VC2 to VC3, VC3 to VC4, VC4 to VC5): – 0.3 to 8.5V; (WDI, SCLK, SDATA): – 0.3 to 8.5 V; (3)Output voltage range, (DSG,CHG) – 0.3 to BAT; (ZVCHG): – 0.3 to 34V; (GPOD): – 0.3 to 34V; (TOUT, SDATA, CELL, XALERT, XRST,LEDOUT): – 0.3 to 7V; (CELL+) – 0.3 to 7V; (4)Current for cell balancing 10 mA; (5)Storage temperature range, Tstg: – 65 to 150℃; (6)Lead temperature (soldering, 10 s): 300℃.

Features

BQ29330DBT features: (1)2- 3- or 4-Cell Series Protection Control; (2)Can Directly Interface with the bq803x-Based Gas Gauge Family; (3)Watchdog and POR for the Host; (4)Provides Individual Cell Voltages and Battery Voltage to Battery Management Host; (5)Capable of Operation With 5-m ? Sense Resistor Integrated Cell Balancing Drive; (6)I2 C Compatible User Interface Allows Access to Battery Information; (7)Programmable Threshold and Delay for Overload Short Circuit in Discharge and Short Circuit in Charge; (8)NMOS FET Drive for Charge and Discharge FETs; (9)Host Control can Initiate Sleep and Ship Power Modes; (10)Integrated 2.5-V, 16-mA LDO; (11)Integrated 3.3-V, 25-mA LDO; (12)Supply Voltage Range from 4.5 V to 28 V; (13)Low Supply Current of 100 μ A Typical.

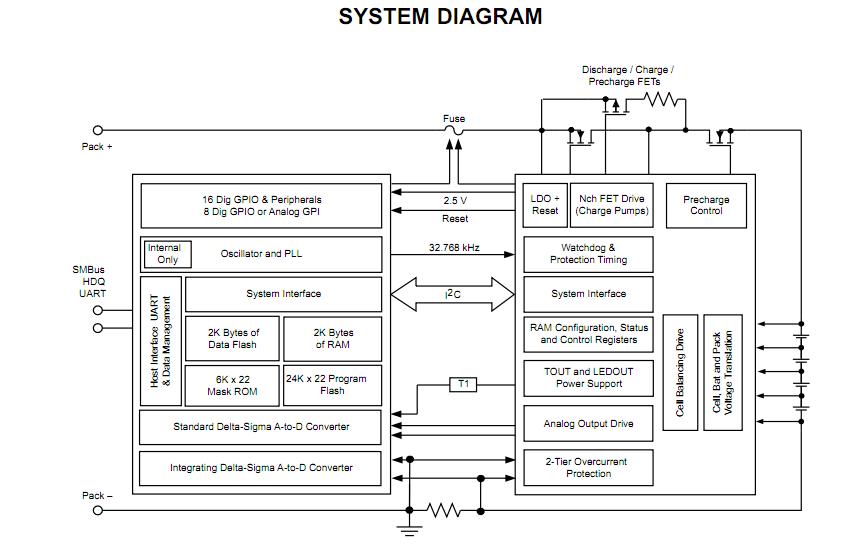

Diagrams
