Product Summary
The AZ1117BH-3.3TRE1 is a low dropout three-terminal regulator with a dropout of 1.2V at 800mA output current. The AZ1117BH-3.3TRE1 has been optimized for low voltage where transient response and minimum input voltage are critical. The AZ1117BH-3.3TRE1 provides current limit and thermal shut-down. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within ±1%. On-chip thermal shutdown provides protection against a combination of high current and ambient temperature that would create excessive junction temperature. The applications of the AZ1117BH-3.3TRE1 include USB Device, Add-on Card, DVD Player and PC Motherboard.
Parametrics
AZ1117BH-3.3TRE1 absolute maximum ratings: (1)Input Voltage, VIN: 18 V; (2)Operating Junction Temperature Range, TJ: 150℃; (3)Storage Temperature Range, TSTG: -65 to 150℃; (4)Lead Temperature (Soldering, 10sec), TLEAD: 260℃.
Features
AZ1117BH-3.3TRE1 features: (1)Low Dropout Voltage: 1.2V at 800mA Output Current; (2)Output Noise from 10Hz to 10KHz: 0.003% ; (3)PSRR at IOUT=300mA and f=120Hz: 70dB ; (4)Output Voltage Accuracy: ±1%; (5)On-chip Thermal Shutdown; (6)Maximum Quiescent Current: IQMAX=6mA; (7)Operation Junction Temperature: -20 to 105℃.

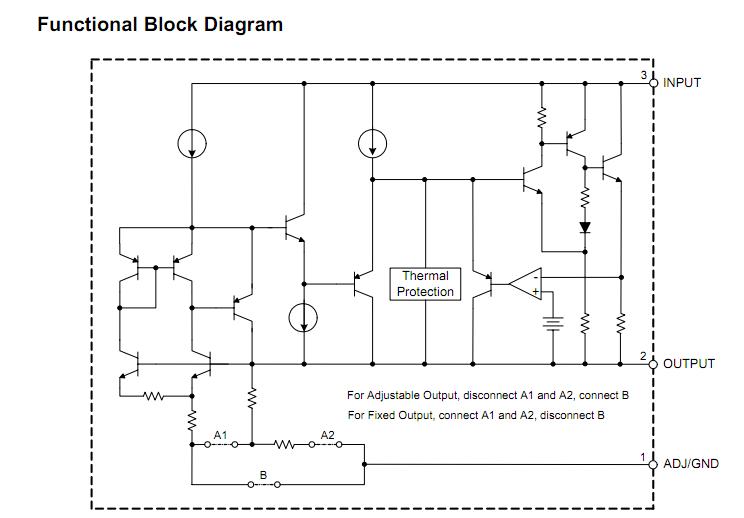

Diagrams
 |
