Product Summary

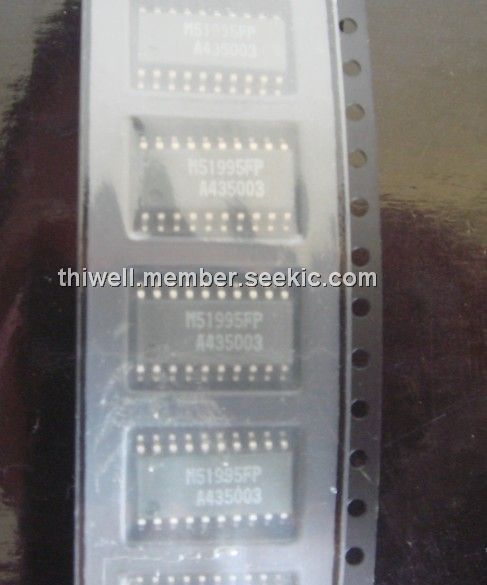

The M51995FP is a switching regulator controller which is especially designed to get the regulated DC voltage from AC power supply. This IC can directly drive the MOS-FET with fast rise and fast fall output pulse. It is suitable for Feed forward regulator,fly-back regulator.
Parametrics
M51995FP absolute maximum ratings: (1)VCC Supply voltage: 36V; (2)VC, Collector voltage: 36V; (3)IO, Output current: Peak: ±2A; Continuous: ±0.15A; (4)VVF, VF terminal voltage: Vcc V; (5)VCLM- CLM-terminal voltage: -4.0 to 4.0V; (6)IOVP OVP terminal current: 8mA; (7)VDET DET terminal voltage: 6V; (8)VFB F/B terminal voltage: 0~10V; (9)PD, Power dissipation: 1.5W; (10)K, Thermal derating factor: 12mW/℃; (11)Topr, Operating temperature: -30 to +85℃; (12)Tstg, Storage temperature: -40 to +125℃; (13)Tj, Junction temperature: 150℃.
Features
M51995FP features: (1)500kHz operation to MOS FET; (2)Compact and light-weight power supply; (3)Simplified peripheral circuit with protection circuit and built-in large-capacity totempole output; (4)High-performance and highly functional power supply.

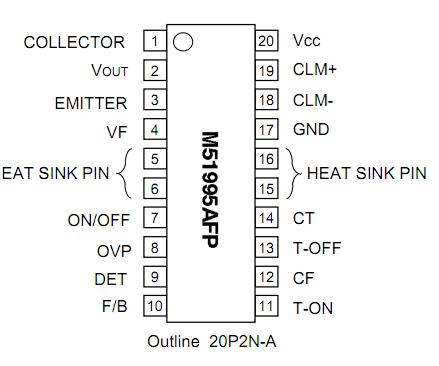

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M51995FP |
Other |
|
Data Sheet |
Negotiable |
|
||||||
