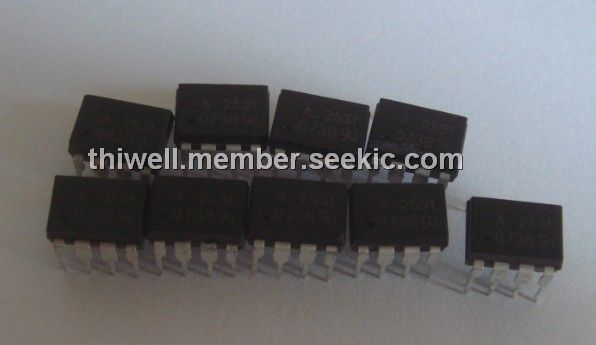

HCPL-2531

dual channel optocoupler, 8-SMD, 8mA, HCPL-2531, AVAGO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.40~2.00

PartNumber:: HCPL-2531

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: PDIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:HCPL-2531
US $1.40 - 2.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HCPL-2531 is a dual channel optocoupler. It contains a pair of light emitting diodes and integrated photo-detec tors with electrical insulation between input and output. The HCPL-2531 is available in an 8 Pin DIP and in an industry standard SO-8 package. The following is a cross reference table listing the 8 Pin DIP part number and the electrically equivalent SO-8 part number. The applications of the HCPL-2531 are Line receivers, High speed logic ground isolation, Replace pulse transformers, Analog signal ground isolation, Polarity sensing, Isolated analog amplifier.

Parametrics

HCPL-2531 absolute maximum ratings: (1)Storage Temperature:-55 to 125℃; (2)Operating Temperature:-55 to 100℃; (3)Average Forward Input Current:25 mA(each channel); (4)Peak Forward Input Current (each channel):50 mA(50% duty cycle, 1 ms pulse width); (5)Peak Transient Input Current (each channel):1A(≤ 1μs pulse width, 300 pps); (6)Reverse LED Input Voltage (each channel):5V; (7)Input Power Dissipation (each channel):45mW; (8)Average Output Current (each channel):8mA; (9)Peak Output Current:16mA; (10)Supply Voltage (Pin 8-5):-0.5 to 30V; (11)Output Voltage (Pins 7-5, 6-5):-0.5 to 20V; (12)Output Power Dissipation (each channel):35mW ; (13)Lead Solder Temperature:260℃.

Features

HCPL-2531 features: (1)15 kV/μs minimum common mode transient immunity at VCM = 1500 V; (2)TTL compatible; (3)Available in 8 pin DIP, SO-8, and 8 pin DIP-gull wing surface mount (option 020) packages; (4)High density packaging; (5)3 MHz bandwidth; (6)Open collector outputs.
