Product Summary
The AT91SAM9260B-QU is an ARM-based Embedded MPU.The device is based on the integration of an ARM926EJ-S processor with fast ROM and RAM memories and a wide range of peripherals.The AT91SAM9260B-QU embeds an Ethernet MAC, one USB Device Port, and a USB Host controller. The AT91SAM9260B-QU also integrates several standard peripherals, such as the USART, SPI, TWI, Timer Counters, Synchronous Serial Controller, ADC and MultiMedia Card Interface.
Parametrics
AT91SAM9260B-QU absolute maximum ratings: (1)Operating Temperature (Industrial): -40℃ to +85℃; (2)Storage Temperature: -60℃ to +150℃; (3)Voltage on Input Pins with Respect to Ground: -0.3V to VDDIO+0.3V(+4V max); (4)Maximum Operating Voltage (VDDCORE, VDDPLL and VDDBU): 2.0V; (5)Maximum Operating Voltage (VDDIOM and VDDIOP): 4.0V; (6)Total DC Output Current on all I/O lines: 350mA.
Features
AT91SAM9260B-QU features: (1)32-bit External bus interface supporting 4-bank SDRAM/LPSDR, static memories,compactflash, SLC NAND flash with ECC; (2)two 4-kbyte internal SRAM, single-cycle access at system speed; (3)one 32-kbyte internal ROM, embedding bootstrap routine; (4)reset controller with on-chip power-on reset; (5)selectable 32,768 Hz low-power and 3-20 MHz main oscillator; (6)internal low-power 32 kHz RC oscillator; (7)one PLL for the system and one PLL optimized for USB; (8)two programmable external clock signals; (9)advanced interrupt controller and debug unit; (10)periodic interval timer, watchdog timer and real time timer.

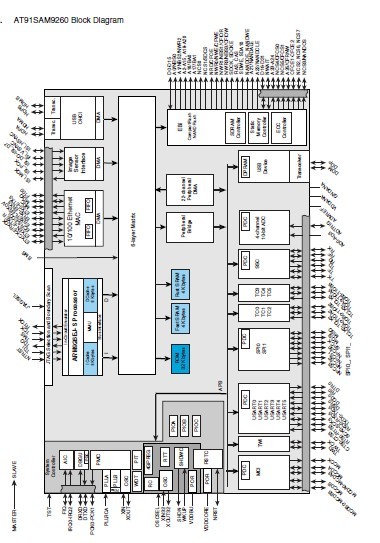

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AT91SAM9260B-QU |
Atmel |
ARM Microcontrollers (MCU) 32-bit |
Data Sheet |
|
|
|||||||||||||
