Product Summary
The LT1381CS is a dual RS232 driver/receiver pair with integral charge pump to generate RS232 voltage levels from a single 5V supply. The circuit features rugged bipolar design to provide operating fault tolerance and ESD protection unmatched by competing CMOS designs. Using only 0.1µF external capacitors, the LT1381CS consumes only 40mW of power and can operate to 120kbaud even while driving heavy capacitive loads. New ESD structures on the chip allow the LT1381CS to survive multiple ±10kV strikes, eliminating the need for costly TransZorbs on the RS232 line pins. Driver outputs are protected from overload and can be shorted to ground or up to ±25V without damage. The applicaitons of the LT1381CS include Portable Computers, Battery-Powered Systems, Power Supply Generator, Terminals and Modems.
Parametrics
LT1381CS absolute maximum ratings: (1)Supply Voltage (VCC): 6V; (2)V+: 13.2V; (3)V–: –13.2V; (4)Input Voltage Driver: V– to V+; (5)Receiver: – 30V to 30V; (6)Output Voltage Driver: (V+ – 30V) to (V– + 30V); Receiver: – 0.3V to (VCC + 0.3V); (7)Short-Circuit Duration V+: 30 sec; V–: 30 sec; Driver Output: Indefinite; Receiver Output: Indefinite; (8)Operating Temperature Range: 0 to 70℃; (9)Storage Temperature Range:– 65 to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1381CS features: (1)ESD Protection over ±10kV; (2)Low Cost; (3)Uses Small Capacitors: 0.1μF; (4)CMOS Comparable Low Power: 40mW; (5)Operates from a Single 5V Supply; (6)120kBaud Operation for RL = 3k, CL = 2500pF; (7)250kBaud Operation for RL = 3k, CL = 1000pF; (8)Rugged Bipolar Design; (9)Outputs Assume a High Impedance State When Powered Down; (10)Absolutely No Latchup; (11)Available in Narrow SO Package.

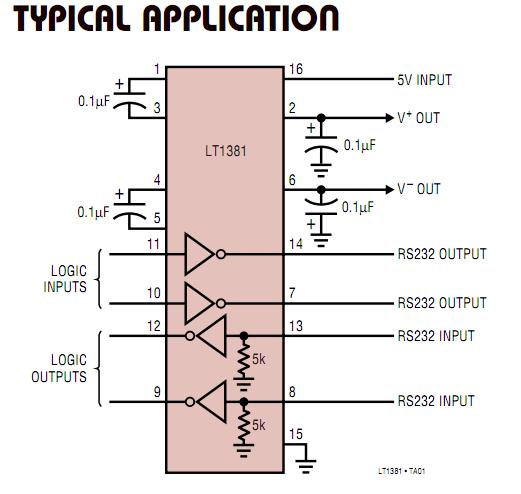

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1381CS |
|
IC DVR/RCVR 5V RS232 DUAL 16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1381CS#PBF |
|
IC DVR/RCVR 5V RS232 DUAL 16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1381CS#TR |
|
IC TXRX 5V RS232 DUAL 16SOIC |
Data Sheet |
|
|
||||||||||
|
LT1381CS#TRPBF |
|
IC DVR/RCVR 5V RS232 DUAL 16SOIC |
Data Sheet |
|
|
||||||||||
