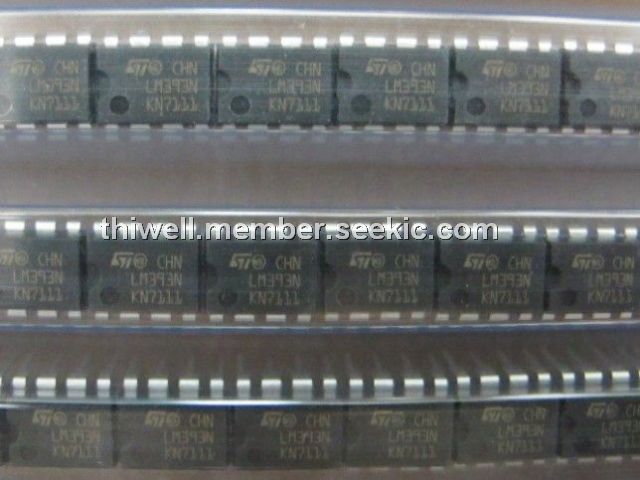

Product Summary

The LM393N is a dual independent precision voltage comparator capable of single or split supply operation. The LM393N is designed to permit a common mode range–to–ground level with single supply operation. Input offset voltage specifications as low as 2.0 mV make this device an excellent selection for many applications in consumer automotive, and industrial electronics.

Parametrics

LM393N absolute maximum ratings: (1)Power Supply Voltage VCC: +36 or ±18 Vdc; (2)Input Differential Voltage Range VIDR: 36 Vdc; (3)Input Common Mode Voltage Range VICR: –0.3 to +36 Vdc; (4)Output Short Circuit–to–Ground ISC: Continuous mA; (5)Output Sink Current (Note 1) ISink: 20 mA; (6)Power Dissipation @ TA = 25℃ PD: 570 mW; (7)Derate above 25℃ 1/RθJA: 5.7 mW/℃; (8)Operating Ambient Temperature Range: 0 to +70 ℃; (9)Maximum Operating Junction Temperature TJ(max): 125 ℃; (10)Storage Temperature Range Tstg: –65 to +150 ℃.

Features

LM393N features: (1)Wide Single–Supply Range: 2.0 Vdc to 36 Vdc; (2)Split–Supply Range: ±1.0 Vdc to ±18 Vdc; (3)Very Low Current Drain Independent of Supply Voltage: 0.4 mA; (4)Low Input Bias Current: 25 nA; (5)Low Input Offset Current: 5.0 nA; (6)Low Input Offset Voltage: 2.0 mV (max) LM393A 5.0 mV (max)LM293/393; (7)Input Common Mode Range to Ground Level; (8)Differential Input Voltage Range Equal to Power Supply Voltage; (9)Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels; (10)ESD Clamps on the Inputs Increase the Ruggedness of the Device without Affecting Performance.

Diagrams

LM393N schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM393NG
LM393NG

ON Semiconductor

Comparator ICs 2-36V Dual Commercial Temp

Data Sheet

0-1: $0.23
1-25: $0.20
25-100: $0.14
100-500: $0.12
LM393N/NOPB
LM393N/NOPB

National Semiconductor (TI)

Comparator ICs LOW PWR LOW OFFSET VLTG DUAL COMPARATOR

Data Sheet

0-1: $0.54
1-25: $0.42
25-100: $0.36
100-250: $0.32
LM393N
LM393N

STMicroelectronics

Comparator ICs Lo-Pwr Dual Voltage

Data Sheet

0-1: $0.23
1-10: $0.16
10-100: $0.12
100-250: $0.10
