Product Summary

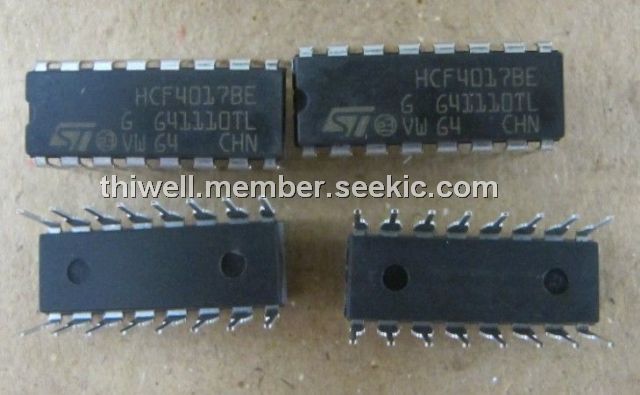

The HCF4017BE is a decade counter, available in 16-lead dual in-line plastic or ceramic package and plastic micro package.

Parametrics

HCF4017BE absolute maximum ratings: (1)VDD, Supply Voltage: –0.5 to + 20 V; (2)VI, Input Voltage: –0.5 to VDD + 0.5 V; (3)II, DC Input Current (any one input): ± 10 mA; (4)Ptot, Total Power Dissipation: 200mW; (5)Top, Operating Temperature:–40 to +85℃; (6)Tstg, Storage Temperature: –65 to + 150℃.

Features

HCF4017BE features: (1)fully static operation; (2)mediumspeedoperation-12MHz (typ.) at VDD = 10V; (3)Standardized symmetrical output characteristics; (4)quiescent current specified to 20V for hcc device; (5)input currentof 100nA at 18V and 25℃ for hcc device; (6)100% testedfor quiescent current; (7)5V, 10V, and 15V parametric ratings; (8)meetsallrequirementsof jedecten-tative standard N° 13A, standard specifications for description of b series cmos devices.

Diagrams

HCF4017BE logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCF4017BEY
HCF4017BEY

STMicroelectronics

Counter Shift Registers Decade Counter/Div

Data Sheet

0-1: $0.40
1-10: $0.34
10-100: $0.25
100-250: $0.22
