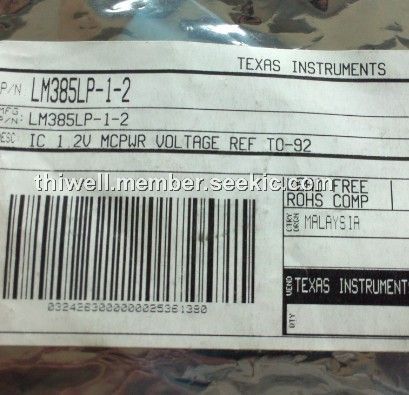

LM385LP-1-2

micropower voltage reference, 15μA to 20mA, 1 Ω, TO-92-3, LM385LP-1-2

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~1.00

PartNumber:: LM385LP-1-2

Brand:: Texas Instruments - TI | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-26

From Other Seller

Part Number:LM385LP-1-2
US $0.30 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

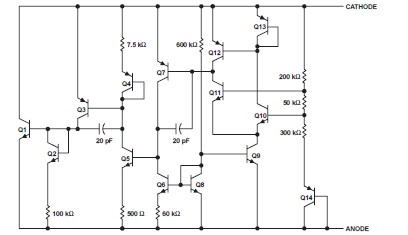

The LM385LP-1-2 is a micropower voltage reference. It operates over a 10-μA to 20-mA current range and feature exceptionally low dynamic impedance and good temperature stability. On-chip trimming provides tight voltage tolerance. The band-gap reference for the LM385LP-1-2 has low noise and long-term stability.

Parametrics

LM385LP-1-2 absolute maximum ratings: (1)Reverse current, IR: 30 mA; (2)Forward current, IF: 10 mA; (3)Package thermal impedance, θJA: D package: 97℃/W, LP package: 140℃/W, PS package: 95℃/W, PW package: 149℃/W; (4)Operating virtual junction temperature, TJ: 150℃; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (6)Storage temperature range, Tstg: -65℃ to 150℃.

Features

LM385LP-1-2 features: (1)Operating Current Range: 15 μA to 20 mA; (2)1% and 2% Initial Voltage Tolerance; (3)Reference Impedance: 1 Ω Max at 25℃; (4)Very Low Power Consumption; (5)Applications: Portable Meter References, Portable Test Instruments, Battery-Operated Systems, Current-Loop Instrumentation, Panel Meters; (6)Interchangeable With Industry Standard LM385-1.2.
