Product Summary

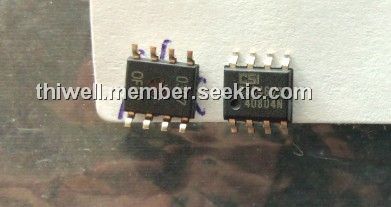

The CAT93C46VI-GT3 is a 1K-bit Serial EEPROM memory device which is configured as either 64 registers of 16 bits (ORG pin at VCC) or 128 registers of 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The CAT93C46VI-GT3 features a self-timed internal write with auto-clear. On-chip Power-On Reset circuit protects the internal logic against powering up in the wrong state.
Parametrics
CAT93C46VI-GT3 absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Voltage on Any Pin with Respect to Ground: -0.5 V to +6.5 V.
Features
CAT93C46VI-GT3 features: (1)High speed operation: 2MHz; (2)1.8V to 5.5V supply voltage range; (3)Selectable x8 or x16 memory organization; (4)Self-timed write cycle with auto-clear; (5)Software write protection; (6)Power-up inadvertant write protection; (7)Low power CMOS technology; (8)1,000,000 Program/erase cycles; (9)100 year data retention; (10)Industrial temperature ranges; (11)RoHS-compliant 8-pin PDIP, SOIC, TSSOP and 8-pad TDFN packages.

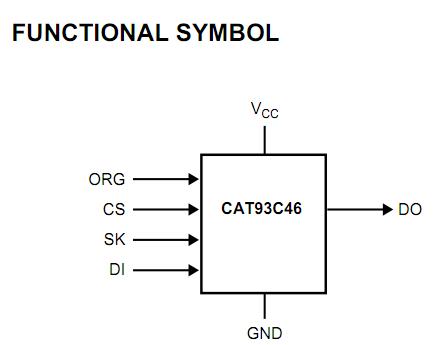

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CAT93C46VI-GT3 |
ON Semiconductor |
EEPROM 1K-Bit Microwire Serial EEPROM |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
CAT93 C86 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CAT93 HC46 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CAT93C46 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
CAT93C46J |
Catalyst (ON Semiconductor) |
EEPROM (128x8) / (64x16) 1K |
Data Sheet |
Negotiable |
|
||||||||||||
|
CAT93C46J-1.8 |
Catalyst (ON Semiconductor) |
EEPROM (128x8) / (64x16) 1K |
Data Sheet |
Negotiable |
|
||||||||||||
|
CAT93C46JA |
Catalyst (ON Semiconductor) |
EEPROM (128x8) / (64x16) 1K |
Data Sheet |
Negotiable |
|
||||||||||||
