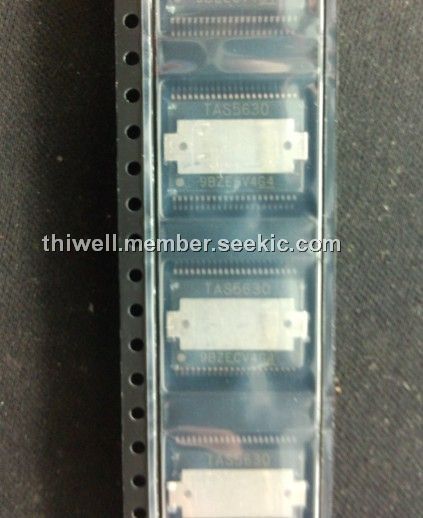

TAS5630DKD

Product Summary

The TAS5630DKD is a high performance analog input Class D amplifier with integrated closed loop feedback technology (known as PurePath HD) with the ability to drive up to 300W Stereo into 4 to 8 Ω Speakers from a single 50V supply. The applications of the TAS5630DKD include Mini Combo System, AV Receivers, DVD Receivers and Active Speakers.

Parametrics

TAS5630DKD absolute maximum ratings: (1)VDD to AGND: – 0.3 to 13.2 V; (2)GVDD to AGND: – 0.3 to 13.2 V; (3)PVDD_X to GND_X:– 0.3 to 69 V; (4)OUT_X to GND_X:– 0.3 to 69 V; (5)BST_X to GND_X:– 0.3 to 82.2 V; (6)BST_X to GVDD_X:– 0.3 to 69 V; (7)VREG to AGND: – 0.3 to 4.2 V; (8)GND_X to GND: – 0.3 to 0.3 V; (9)GND_X to AGND: – 0.3 to 0.3 V; (10)OC_ADJ, M1, M2, M3, OSC_IO+, OSC_IO-, FREQ_ADJ, VI_CM, C_STARTUP, PSU_REF to AGND: – 0.3 to 4.2 V; (11)INPUT_X: – 0.3 to 5 V; (12)RESET , SD , OTW1 , OTW2 , CLIP , READY to AGND: – 0.3 to 7 V; (13)Continuous sink current ( SD , OTW1 , OTW2 , CLIP , READY ): 9mA; (14)Operating junction temperature range, TJ: 0 to 150℃; (15)Storage temperature, Tstg: – 40 to 150℃; (16)Human body model (all pins): ± 2 kV; (17)Electrostatic discharge Charged device model (all pins): ± 500 V.

Features

TAS5630DKD features: (1)Signal Bandwidth up to 80kHz for High Frequency Content From HD Sources; (2)Ultralow 0.03% THD at 1W into 4Ω; (3)Flat THD at all Frequencies for Natural Sound; (4)80dB PSRR (BTL, No Input Signal); (5)>100dB (A weighted) SNR; (6)Click and Pop Free Startup; (7)Multiple Configurations Possible on the Same PCB With Stuffing Options:; (8)Mono Parallel Bridge Tied Load (PBTL); (9)Stereo Bridge Tied Load (BTL); (10)2.1 Single Ended Stereo Pair and Bridge Tied Load Subwoofer; (11)Quad Single Ended Outputs; (12)Total Output Power at 10%THD+N; (13)600W in Mono PBTL Configuration; (14)300W per Channel in Stereo BTL Configuration; (15)145W per Channel in Quad Single Ended Configuration; (16)High Efficiency Power Stage ( >88%) With 60-mΩ Output MOSFETs; (17)Self-Protection Design (Including Undervoltage, Overtemperature, Clipping, and Short-Circuit Protection) With Error Reporting; (18)EMI Compliant When Used With Recommended System Design.

Diagrams
