Product Summary

The LL103B-GS08 is a Small Signal Schottky Diode. The applications of the device include HF-Detector, Protection circuit, Small battery charger and AC-DC/DC-DC converters.

Parametrics

LL103B-GS08 absolute maximum ratings: (1)Reverse voltage, VR: 30 V; (2)Forward continuous current, IFAV: 200 mA; (3)Peak forward surge current, IFSM: 15 A; (4)Power dissipation, Ptot: 400 mW.

Features

LL103B-GS08 features: (1)Integrated protection ring against static discharge; (2)Low capacitance; (3)Low leakage current; (4)Low forward voltage drop; (5)Lead (Pb)-free component; (6)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

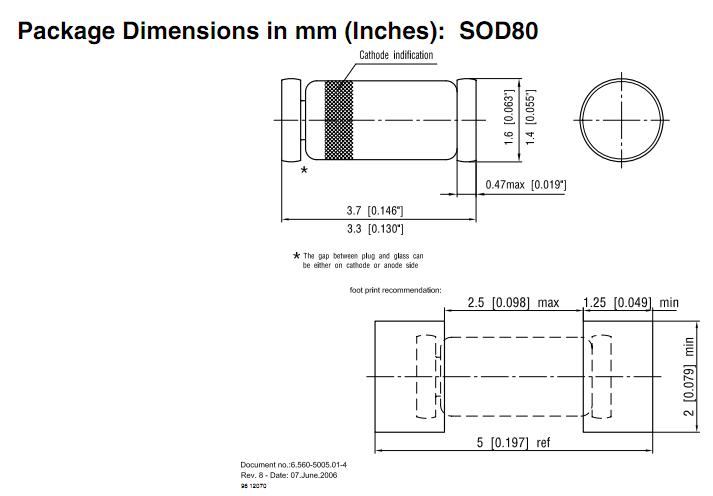

LL103B-GS08 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LL103B-GS08
LL103B-GS08
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 20mA 30 Volt
Data Sheet
0-1: $0.05
1-10: $0.04
10-50: $0.04
50-100: $0.04
