Product Summary

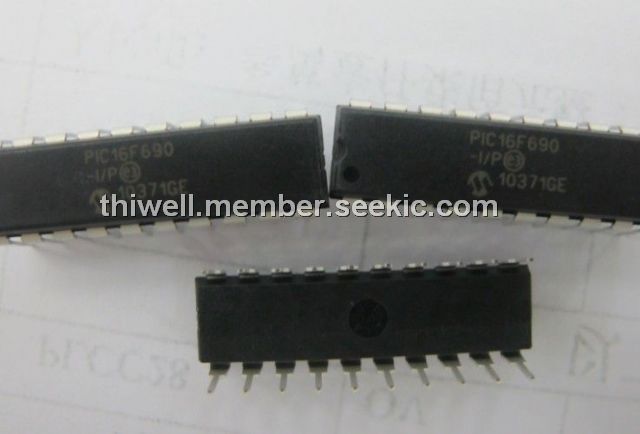

The PIC16F690-I/P is a 20-pin flash-based, 8-Bit CMOS microcontroller with nanoWatt technology.
Parametrics
PIC16F690-I/P absolute maximum ratings: (1)Ambient temperature under bias: 40 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA, PORTB and PORTC (combined): 200 mA; (14)Maximum current sourced PORTA, PORTB and PORTC (combined): 200 mA.
Features
PIC16F690-I/P features: (1)Power-Saving Sleep mode; (2)Wide operating voltage range (2.0V-5.5V); (3)Industrial and Extended Temperature range; (4)Power-on Reset (POR); (5)Power-up Timer (PWRTE) and Oscillator Start-up Timer (OST); (6)Brown-out Reset (BOR) with software control option; (7)Enhanced low-current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (8)Multiplexed Master Clear/Input pin; (9)Programmable code protection.
Diagrams
<IMG border=0 alt="PIC16F690-I/P diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012710214331144.jpg">
