Product Summary

The MC908MR32CBE is a low-cost, high-performance, 8-bit microcontroller unit (MCU). The MC908MR32CBE uses the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Parametrics

MC908MR32CBE absolute maximum ratings: (1)Supply voltage: –0.3 to +6.0 V; (2)Input voltage: VSS –0.3 to VDD +0.3 V; (3)Input high voltage: VDD + 4 maximum V; (4)Maximum current per pin excluding VDD and VSS: ±25 mA; (5)Storage temperature: –55 to +150 ℃; (6)Maximum current out of VSS: 100 mA; (7)Maximum current into VDD: 100 mA.

Features

MC908MR32CBE features: (1)High-performance M68HC08 architecture; (2)8-MHz internal bus frequency; (3)On-chip programming firmware for use with host personal computer; (4)FLASH data security; (5)768 bytes of on-chip random-access memory (RAM); (6)12-bit, 6-channel center-aligned or edge-aligned pulse-width modulator (PWMMC); (7)Serial peripheral interface module (SPI); (8)Serial communications interface module (SCI); (9)16-bit, 4-channel timer interface module (TIMA); (10)16-bit, 2-channel timer interface module (TIMB); (11)Clock generator module (CGM); (12)Low-voltage inhibit (LVI) module with software selectable trip points; (13)10-bit, 10-channel analog-to-digital converter (ADC).

Diagrams

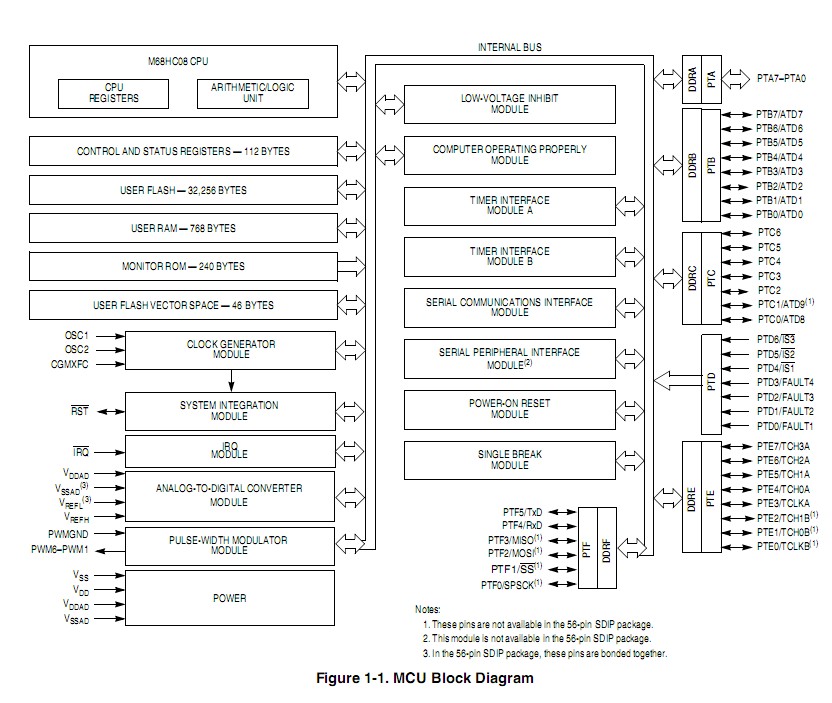

MC908MR32CBE block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC908MR32CBE
MC908MR32CBE

Freescale Semiconductor

8-bit Microcontrollers (MCU) 8BIT MCU W/32K FLASH EPP

Data Sheet

0-1: $7.26
1-25: $6.71
25-100: $5.63
100-500: $5.26
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MC908AB32CFUE
MC908AB32CFUE

Freescale Semiconductor

8-bit Microcontrollers (MCU) 32K FLASH & 512 EE

Data Sheet

0-46: $6.60
46-100: $5.53
100-500: $5.17
500-1000: $4.75
MC908AB32CFUER
MC908AB32CFUER

Freescale Semiconductor

8-bit Microcontrollers (MCU) 32K FLASH & 512 EE

Data Sheet

0-750: $5.30
MC908AB32MFUE
MC908AB32MFUE

Freescale Semiconductor

8-bit Microcontrollers (MCU) 32K FLASH & 512 EE

Data Sheet

0-1: $7.85
1-25: $7.25
25-100: $6.08
100-500: $5.69
MC908AP16ACBE
MC908AP16ACBE

Freescale Semiconductor

8-bit Microcontrollers (MCU) MCU 16K FLSH HS OSC

Data Sheet

0-1: $3.71
1-25: $3.38
25-100: $2.81
100-500: $2.56
MC908AP16ACFAE
MC908AP16ACFAE

Freescale Semiconductor

8-bit Microcontrollers (MCU) MCU 16K FLSH HS OSC

Data Sheet

0-150: $2.81
150-500: $2.56
500-1000: $2.23
1000-2000: $2.15
MC908AB32VFUE
MC908AB32VFUE

Freescale Semiconductor

8-bit Microcontrollers (MCU) 8 BIT MCU 32K FLASH 512E

Data Sheet

Negotiable
