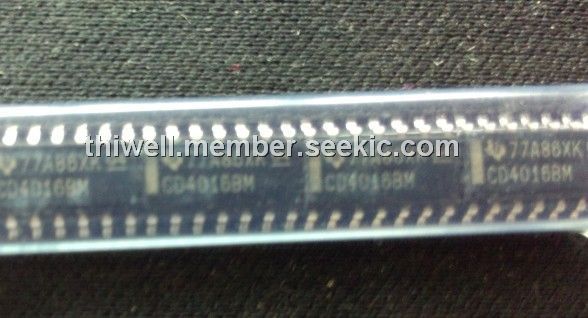

CD4016BM

quad bilateral switch, 14-SOIC, 3 V ~ 18 V, 100mW, ±10mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.15~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.15~1.00

PartNumber:: CD4016BM

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:CD4016BM
US $0.15 - 1.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

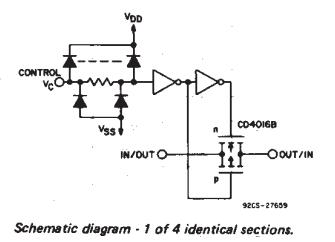

The CD4016BM is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals. It has a signal control signal input which simultaneously biases both the P and N device in a given switch on or off. The applications of the CD4016BM include analog signal switching/multiplexing, modulator, demodulator, commutating switch, digital signal switching/multiplexing, CMOS logic impiementation, analog-to-digital & digital-to-analog conversion and digital control of frequency, impedance, phase, and analog-signal gain.

Parametrics

CD4016BM absolute maximum ratings: (1)DC supply-votlage range, (VDD) voltage referenced to VSS terminal: -0.5 to 20V; (2)input voltage range, all inputs: -0.5 to VDD+0.5V; (3)DC input current, any one input: ±10mA; (4)power dissipation per package (PD): 500mW; (5)device dissipation per output transistor: 100mW; (6)operating-temperature range, TA: -55 to 125℃; (7)storage temperature range, Tstg: -65 to 150℃; (8)lead temperature: 265℃.

Features

CD4016BM features: (1)20V digital or ±10V peak-to-peak switching; (2)280Ω typical on-state resistance for 15V operation; (3)switching on-state resistance matched to within 10Ω typ over 15V signal-input range; (4)high on/off output-voltage ratio 65dB typ at fis=10kHz, RL=10kΩ; (5)high degreee of linearity: <0.5% distortion; (6)extremely low off-state switch leakage resulting in very low offset current and high effective off-state resistance; (7)extremely high control input impedance; (8)low crosstalk between switches; (9)matched control-input to signal-output capacitance; (10)100% tested for quiescent current at 20V; (11)maximum control input crrent of 1μA at 18V over full package temperature range.
