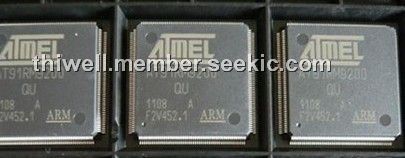

AT91RM9200-QU-002

ARM920T-based microcontroller, 208 PQFP, 180MHz, 8 mA, AT91RM9200-QU-002

Rated 5 Rating 5 | reviews | Write a review

Price:: US $14.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $14.00~15.00

PartNumber:: AT91RM9200-QU-002

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:AT91RM9200-QU-002
US $14.00 - 15.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

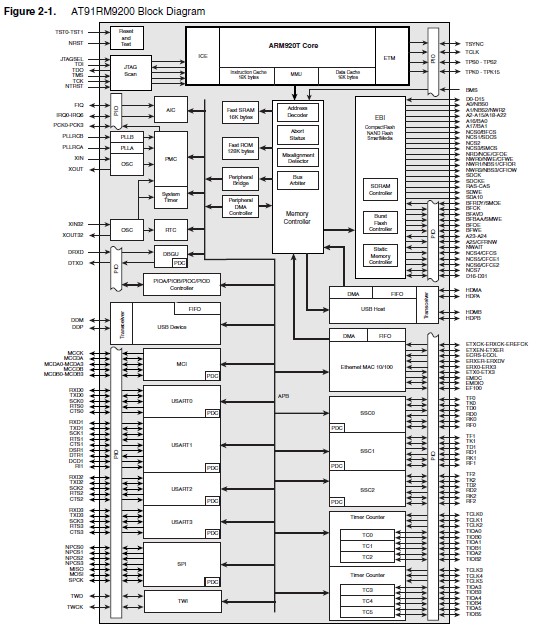

The AT91RM9200-QU-002 is an ARM920T-based microcontroller. It is a complete system-on-chip built around the ARM920T ARM Thumb processor. The AT91RM9200-QU-002 includes a high-speed on-chip SRAM workspace, and a low-latency External Bus Interface (EBI) for seamless connection to whatever configuration of off-chip memories and memory-mapped peripherals is required by the application. Besides, the AT91RM9200-QU-002 integrates a wide range of standard interfaces including USB 2.0 Full Speed Host and Device and Ethernet 10/100 Base-T Media Access Controller (MAC).

Parametrics

AT91RM9200-QU-002 absolute maximum ratings: (1)operating temperature (industrial):-40℃ to +85℃;(2)storage temperature:-60℃ to +150℃;(3)voltage on input pins with respect to ground:-0.3V to +3.6V;(4)maximum operating voltage (VDDCORE, VDDPLL and VDDOSC):1.95 V;(5)maximum operating voltage (VDDIOM and VDDIOP):3.6 V;(6)DC output current (SDA10, SDCKE, SDWE, RAS, CAS):16 mA;(7)DC output current (any other pin):8 mA.

Features

AT91RM9200-QU-002 features: (1)low power: 30.4 mA on VDDCORE, 3.1 mA in standby mode; (2)enhanced clock generator and power management controller; (3)two On-chip oscillators with two PLLs; (4)very slow clock operating mode and software power optimization capabilities four programmable external clock signals; (5)system timer including periodic interrupt, watchdog and second counter; (6)real-time clock with alarm interrupt; (7)debug unit, two-wire UART and support for debug communication channel; (8)advanced interrupt controller with 8-level priority, individually maskable vectored interrupt sources, spurious interrupt protected.
