Product Summary

The TPS54331D is a 28-V, 3-A non-synchronous buck converter that integrates a low RDS(on) high side MOSFET. To increase efficiency at light loads, a pulse skipping Eco-mode feature is automatically activated. Furthermore, the 1 μA shutdown supply current allows the TPS54331D to be used in battery powered applications. Current mode control with internal slope compensation simplifies the external compensation calculations and reduces component count while allowing the use of ceramic output Package capacitors. Applications of the TPS54331D include: Consumer Applications such as Set-Top Boxes, CPE Equipment, LCD Displays, Peripherals, and Battery Chargers, Industrial and Car Audio Power Supplies, 5V, 12V and 24V Distributed Power Systems.

Parametrics

TPS54331D absolute maximum ratings: (1)Input Voltage: VSENSE –0.3 to 3 V, COMP –0.3 to 3 V, SS –0.3 to 3 V; (2)Output Voltage: PH –0.6 to 30 V, PH (10 ns transient from ground to negative peak) –5 V; (3)Source Current: EN 100 mA, BOOT 100 mA, VSENSE 10 mA, PH 9 A; (4)Electrostatic Discharge (HBM): 2 kV; (5)Electrostatic Discharge (CDM): 500 V; (6)Operating Junction Temperature: –40 to 150 ℃; (7)Storage Temperature: –65 to 150 ℃.

Features

TPS54331D features: (1)3.5V to 28V Input Voltage Range; (2)Adjustable Output Voltage Down to 0.8V; (3)High Efficiency at Light Loads with a Pulse Skipping Eco-mode; (4)Fixed 570kHz Switching Frequency; (5)Typical 1μA Shutdown Quiescent Current; (6)Adjustable Slow Start Limits Inrush Currents; (7)Programmable UVLO Threshold; (8)Overvoltage Transient Protection.

Diagrams

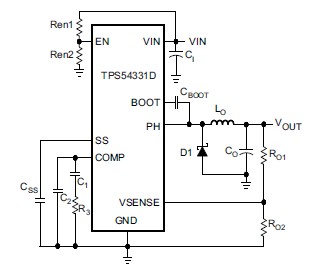

TPS54331D diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS54331DR
TPS54331DR
Texas Instruments
DC/DC Switching Converters 3A 28V In Step Down SWIFT DC/DC Cnvrtr
Data Sheet
0-1: $2.24
1-25: $1.80
25-100: $1.66
100-250: $1.48
TPS54331DRG4
TPS54331DRG4
Texas Instruments
DC/DC Switching Converters 26V,3A DC-DC Converter
Data Sheet
0-1860: $1.09
1860-2000: $1.04
2000-2500: $1.04
2500-5000: $1.01
TPS54331DG4
TPS54331DG4
Texas Instruments
DC/DC Switching Converters 26V,3A DC-DC Converter
Data Sheet
0-1: $2.47
1-25: $2.03
25-100: $1.84
100-250: $1.69
TPS54331DDAR
TPS54331DDAR
Texas Instruments
DC/DC Switching Converters 3.5-28Vin,3A,570kHz SD Converter
Data Sheet
0-1950: $1.08
1950-2500: $1.06
2500-5000: $1.05
TPS54331DDA
TPS54331DDA
Texas Instruments
DC/DC Switching Regulators 3.5-28Vin,3A,570kHz SD Converter
Data Sheet
0-1: $2.55
1-25: $2.04
25-100: $1.63
100-250: $1.36
TPS54331D
TPS54331D
Texas Instruments
DC/DC Switching Converters 3A 28V In Step Down SWIFT DC/DC Cnvrtr
Data Sheet
0-1: $2.44
1-25: $2.23
25-100: $1.78
100-250: $1.55
