Product Summary

2? 70-mΩ High-Side MOSFET ? Heavy Capacitive Loads
? 500-mA Continuous Current ? Short-Circuit Protections
? Thermal and Short-Circuit Protection
? Accurate Current Limit
(0.75 A min, 1.25 A max)
? Operating Range: 2.7 V to 5.5 V
? 0.6-ms Typical Rise Time
? Undervoltage Lockout
? Deglitched Fault Report (OC)
? No OC Glitch During Power Up
? Maximum Standby Supply Current:
1-μA (Single, Dual) or 2-μA (Triple, Quad)
? Ambient Temperature Range: -40°C to 85°C
? UL Recognized, File Number E169910
? Additional UL Recognition for TPS2042B and
TPS2052B for Ganged Configuration



Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

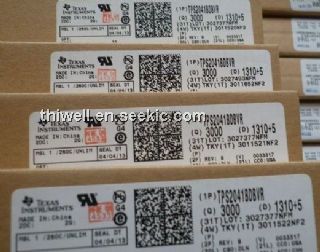

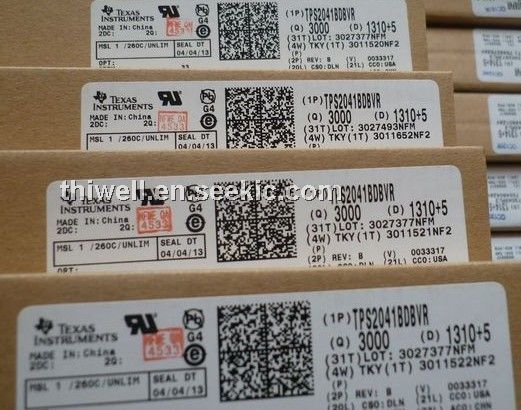

TPS2041BDBVR
TPS2041BDBVR
Texas Instruments
Power Switch ICs - USB Sgl Ch Crnt-Ltd Pwr Dist Sw
Data Sheet
0-1: $0.96
1-25: $0.77
25-100: $0.70
100-250: $0.62
TPS2041BDBVRG4
TPS2041BDBVRG4
Texas Instruments
Power Switch ICs - USB Sgl Ch Crnt-Ltd Pwr Dist Sw
Data Sheet
0-2150: $0.42
2150-3000: $0.40
3000-6000: $0.38
6000-12000: $0.37
