Product Summary

The SN74LS00N is a quadruple 2-input positive-nand gate. The device contains four independent 2-input NAND gates.

Parametrics

SN74LS00N absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage: 5.5 V; (3)Package thermal impedance, θJA: 96℃/W; (4)Storage temperature range, Tstg: -65 to 150℃.

Features

SN74LS00N features: (1)Package Options Include Plastic Small-Outline (D, NS, PS), Shrink Small-Outline (DB), and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs; (2)Also Available as Dual 2-Input Positive-NAND Gate in Small-Outline (PS) Package.

Diagrams

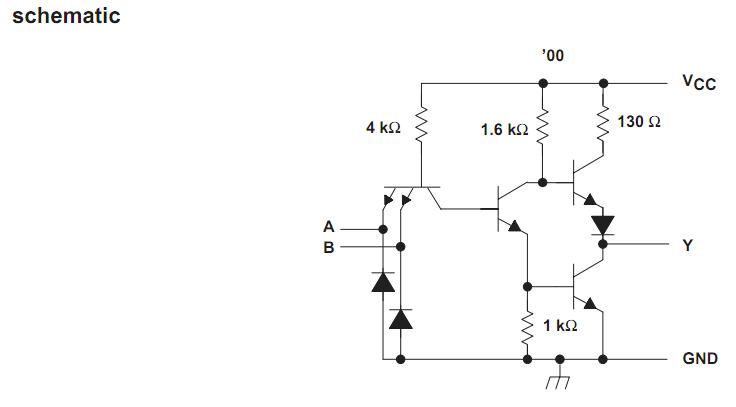

SN74LS00N schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74LS00N
SN74LS00N
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad 2-In Pos NAND
Data Sheet
0-1: $0.35
1-25: $0.32
25-100: $0.27
100-250: $0.24
SN74LS00NE4
SN74LS00NE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad 2-Input Positive-NAND gates
Data Sheet
0-1: $0.35
1-25: $0.32
25-100: $0.27
100-250: $0.24
SN74LS00NSR
SN74LS00NSR
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad 2-Input Positive-NAND gates
Data Sheet
0-1: $0.35
1-25: $0.32
25-100: $0.27
100-250: $0.24
SN74LS00NSRG4
SN74LS00NSRG4
Texas Instruments
Gates (AND / NAND / OR / NOR) Quad 2-Input Positive-NAND gates
Data Sheet
0-1: $0.35
1-25: $0.28
25-100: $0.25
100-250: $0.22
