Product Summary

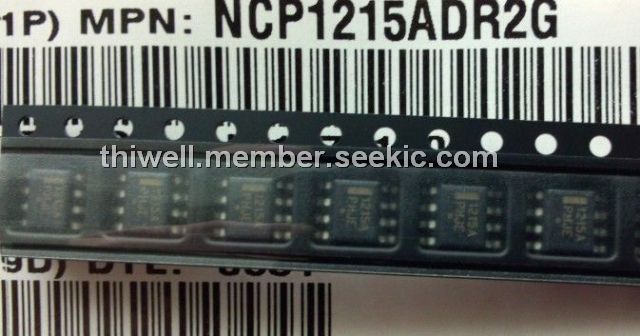

The NCP1215ADR2G is a controller for low power off-line flyback Switched Mode Power Supplies (SMPS) featuring low size, weight and cost constraints together with a good low standby power performance. The operating principle uses switching frequency reduction at light load by increasing the OFF Time. The typical applictions of the NCP1215ADR2G include Auxiliary Power Supply, Standby Power Supply, AC-DC Adapter and Off-line Battery Charger.
Parametrics
NCP1215ADR2G absolute maximum ratings: (1)Power Supply Voltage, VCC: 18 V; (2)FB Pins Voltage Range, VFB: -0.3 to 18 V; (3)CS and CT Pin Voltage Range, Vin: -0.3 to 10 V; (4)Thermal Resistance, Junction-to-Air (SOIC-8 Version), RθJA: 178℃/W; (5)Junction Temperature, TJ: 150℃; (6)Storage Temperature Range, Tstg: -60 to +150℃; (7)ESD Voltage Protection, Human Body Model (HBM), VESD-HBM: 2.0 kV; (8)ESD Voltage Protection, Machine Model (MM), VESD-MM: 200 V.
Features
NCP1215ADR2G features: (1)Variable OFF Time Control Method; (2)Very Low Current Consumption at Startup; (3)Natural Frequency Dithering for Improved EMI Signature; (4)Current Mode Control Operation; (5)Peak Current Compression Reduces Transformer Noise; (6)Programmable Current Sense Resistor Peak Voltage; (7)Undervoltage Lockout; (8)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP1215ADR2G |
ON Semiconductor |
Other Power Management Low Cost Variable Off SMPS |
Data Sheet |
Negotiable |
|
||||
