Product Summary
The NCP1014ST65T3G is a Self-Supplied Monolithic Switcher for Low Standby-Power Offline SMPS. integrates a fixed frequency current mode controller and a 700 V MOSFET. Housed in a PDIP 7, PDIP 7 Gull Wing, or SOT 223 package, the NCP1014AP065G offers everything needed to build a rugged and low cost power supply, including soft start, frequency jittering, short circuit protection, skip cycle, a maximum peak current setpoint and a Dynamic Self Supply (no need for an auxiliary winding).
Parametrics
NCP1014ST65T3G absolute maximum ratings: (1)Power Supply Voltage on all pins, except Pin 5 (Drain), VCC: -0.3 to 10 V; (2)Drain Voltage: -0.3 to 700 V; (3)Drain Current Peak during Transformer Saturation, IDS(pk): 2 x Ilim max A; (4)Maximum Current into Pin 1 when Activating the 8.7 V Active Clamp, I_VCC: 15 mA; (5)Maximum Junction Temperature, TJmax, 150 ℃; (6)Storage Temperature Range: -60 to +150℃; (7)ESD Capability, Human Body Model (All pins except HV): 2.0 kV; (8)ESD Capability, Machine Model: 200 V.
Features
NCP1014ST65T3G features: (1)Built-in 700 V MOSFET with Typical RDSon of 11 ohm and 22 ohm; (2)Large Creepage Distance Between High-Voltage Pins; (3)Current-Mode Fixed Frequency Operation: 65 kHz -100 kHz - 130 kHz; (4)Skip-Cycle Operation at Low Peak Currents Only: No Acoustic Noise! (5)Dynamic Self-Supply, No Need for an Auxiliary Winding; (6)Internal 1.0 ms Soft-Start; (7)Latched Overvoltage Protection with Auxiliary Winding Operation; (8)Frequency Jittering for Better EMI Signature; (9)Auto-Recovery Internal Output Short-Circuit Protection; (10)Below 100 mW Standby Power if Auxiliary Winding is Used; (11)Internal Temperature Shutdown; (12)Direct Optocoupler Connection; (13)SPICE Models Available for TRANsient Analysis; (14)Pb-Free Packages are Available.

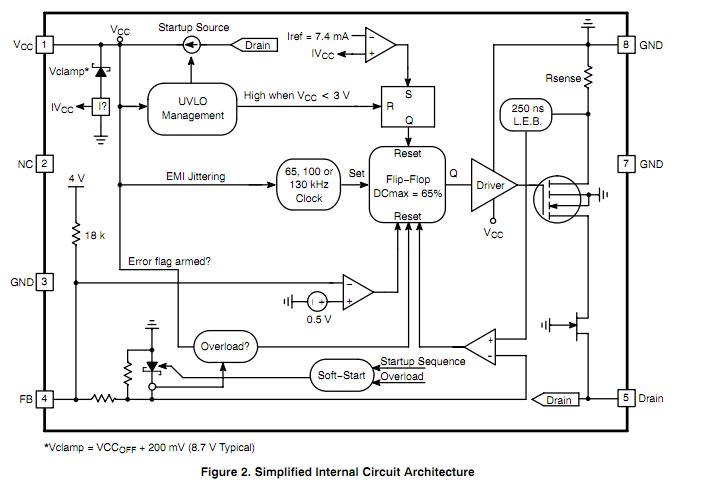

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCP1014ST65T3G |
ON Semiconductor |
Current Mode PWM Controllers Low Standby Power Monolithic Switcher |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
NCP100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
NCP1000 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
NCP1000P |
ON Semiconductor |
Other Power Management 700V 500mA Switching |
Data Sheet |
Negotiable |
|
||||||||||||
|
NCP1000PG |
ON Semiconductor |
Other Power Management 700V 500mA Switching w/OVP and Zero Duty |
Data Sheet |
Negotiable |
|
||||||||||||
|
NCP1001 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
NCP1001P |
ON Semiconductor |
Other Power Management 700V 500mA Switching |
Data Sheet |
Negotiable |
|
||||||||||||
