Product Summary

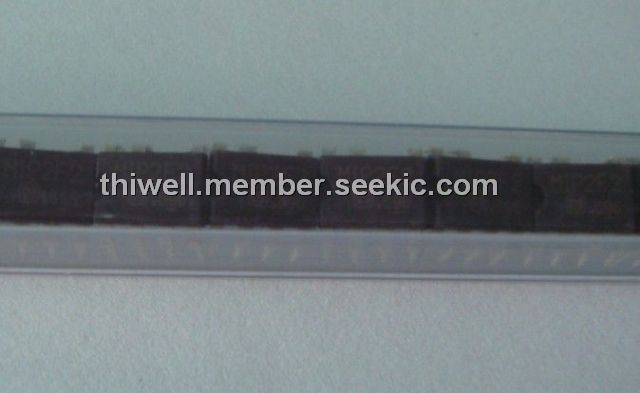

The MIP2F2 is a high-performance IPD designed for 20W battery chargers. The MIP2F2 features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. It provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads, while also conserving power during standby.
Parametrics
MIP2F2 absolute maximum ratings: (1)limit: 0.35 A; (2)Ron: 20 Ω; (3)Uoutput: p to 7 W; (4)fosc: 100 kHz.
Features
MIP2F2 features: (1)Lowering the liability of input voltage; (2)Significantly reduced power consumption with no load: 20mW at 100VAC; (3)Built-in charge protection circuit Built-in overcurrent, overheating, load shorting and overvoltage protection circuits.
Diagrams
 |
