MC74HC00ADR2G

quad 2-input NAND Gate, SOIC14, – 0.5 to + 7.0 V, 750 mW, ± 25 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: MC74HC00ADR2G

Brand:: ON Semiconductor - ON | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-23

From Other Seller

Part Number:MC74HC00ADR2G
US $0.10 - 1.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

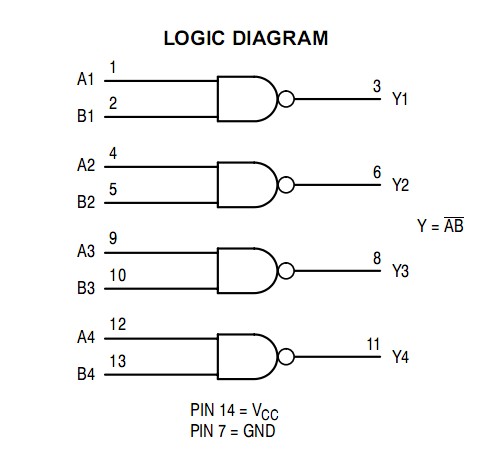

The MC74HC00ADR2G is a quad 2-input NAND Gate which is identical in pinout to the LS00. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Parametrics

MC74HC00ADR2G absolute maximum ratings: (1)DC Supply Voltage (Referenced to GND): – 0.5 to + 7.0 V; (2)DC Input Voltage (Referenced to GND):– 0.5 to VCC + 0.5 V; (3)DC Output Voltage (Referenced to GND): – 0.5 to VCC + 0.5 V; (4)DC Input Current, per Pin: ± 20 mA; (5)DC Output Current, per Pin: ± 25 mA; (6)DC Supply Current, VCC and GND Pins: ± 50 mA; (7)Power Dissipation in Still Air, Plastic DIP: 750 mW; (8)SOIC Package: 500 mW; (9)TSSOP Package: 450 mW; (10)Storage Temperature: – 65 to + 150 ℃; (11)Lead Temperature, 1 mm from Case for 10 Seconds, Plastic DIP, SOIC or TSSOP Package: 260℃.

Features

MC74HC00ADR2G features: (1)Pb-Free Packages are Available; (2)Output Drive Capability: 10 LSTTL Loads; (3)Outputs Directly Interface to CMOS, NMOS and TTL; (4)Operating Voltage Range: 2 to 6 V; (5)Low Input Current: 1 μA; (6)High Noise Immunity Characteristic of CMOS Devices; (7)In Compliance With the JEDEC Standard No. 7 A Requirements; (8)Chip Complexity: 32 FETs or 8 Equivalent Gates.
