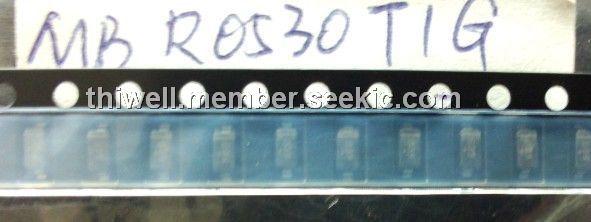

Product Summary
The MBR0530T1G is a Surface Mount Schottky Power Rectifier. The MBR0530T1G uses the Schottky Barrier principle with a large area metal-to-silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system. This package also provides an easy to work with alternative to leadless 34 package style.
Parametrics
MBR0530T1G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 30V; (2)Working Peak Reverse Voltage, VRWM: 30V; (3)DC Blocking Voltage, VR: 30V; (4)Average Rectified Forward Current (Rated VR, TL = 100℃), IF(AV): 0.5 A; (5)Non-Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz), IFSM: 5.5 A; (6)Storage Temperature Range, Tstg: -65 to +150℃; (7)Operating Junction Temperature, TJ: -65 to +125℃; (8)Voltage Rate of Change (Rated VR), dv/dt: 1000 V/μs; (9)ESD Rating: Machine Model = C: > 400V; Human Body Model = 3B: > 8000V.
Features
MBR0530T1G features: (1)Guardring for Stress Protection; (2)Low Forward Voltage; (3)125℃ Operating Junction Temperature; (4)Epoxy Meets UL 94, V-0 @ 0.125 in; (5)Package Designed for Optimal Automated Board Assembly; (6)Pb-Free Packages are Available.

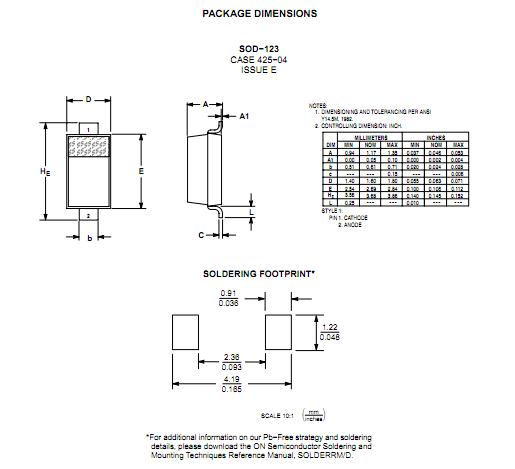

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBR0530T1G |
ON Semiconductor |
Schottky (Diodes & Rectifiers) 0.5A 30V |
Data Sheet |
|
|
|||||||||||||
