Product Summary

The LM833MX is a dual general purpose operational amplifier designed with particular emphasis on performance in audio systems. This dual amplifier IC utilizes new circuit and processing techniques to deliver low noise, high speed and wide band-width without increasing external components or decreasing stability. The LM833MX is internally compensated for all closed loop gains and is therefore optimized for all preamp and high level stages in PCM and HiFi systems. The LM833MX is pin-for-pin compatible with industry standard dual operational amplifiers.

Parametrics

LM833MX absolute maximum ratings: (1)Supply Voltage VCC–VEE: 36V; (2)Differential Input Voltage, VI: ±30V; (3)Input Voltage Range, VIC: ±15V; (4)Power Dissipation, PD: 500 mW; (5)Operating Temperature Range, TOPR: -40 ~ 85℃; (6)Storage Temperature Range, TSTG: -60 ~ 150℃; (7)Soldering Information: 260℃; (8)Vapor Phase (60 seconds): 215℃; (9)Infrared (15 seconds): 220℃; (10)ESD tolerance: 1600V.

Features

LM833MX features: (1)Wide dynamic range: >140dB; (2)Low input noise voltage: 4.5nV/√Hz; (3)High slew rate: 7 V/μs (typ); 5V/μs (min); (4)High gain bandwidth: 15MHz (typ); 10MHz (min); (5)Wide power bandwidth: 120KHz; (6)Low distortion: 0.002%; (7)Low offset voltage: 0.3mV; (8)Large phase margin: 60°; (9)Available in 8 pin MSOP package.

Diagrams

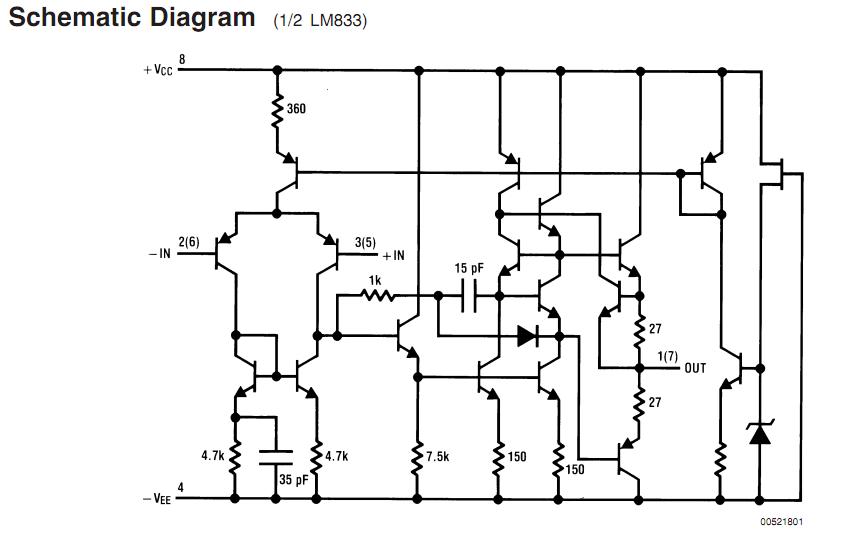

LM833MX schematic diagram
