Product Summary

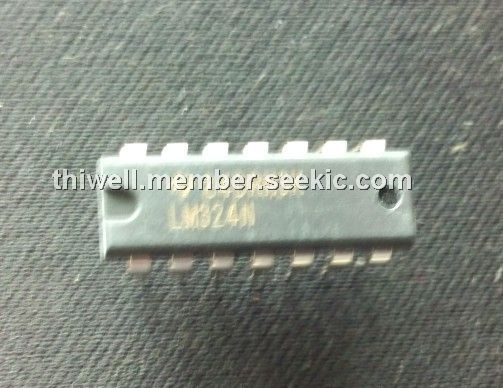

The LM324N is a quadruple operational amplifier. The LM324N consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation of the LM324N from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of the LM324N is independent of the magnitude of the supply voltage. Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems.

Parametrics

LM324N absolute maximum ratings: (1)Supply voltage, VCC: ±13 or 26V; (2)Differential input voltage, VID: ±26; (3)Input voltage, VI: -0.3 to 26; (4)Operating virtual junction temperature, TJ: 150 ℃; (5)Case temperature for 60 seconds FK package: 260 ℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package: 300 ℃; (7)Storage temperature range, Tstg: -65 to 150℃.

Features

LM324N features: (1)Wide Supply Ranges; (2)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (3)Low Input Bias and Offset Parameters; (4)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (5)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (6)Internal Frequency Compensation.

Diagrams

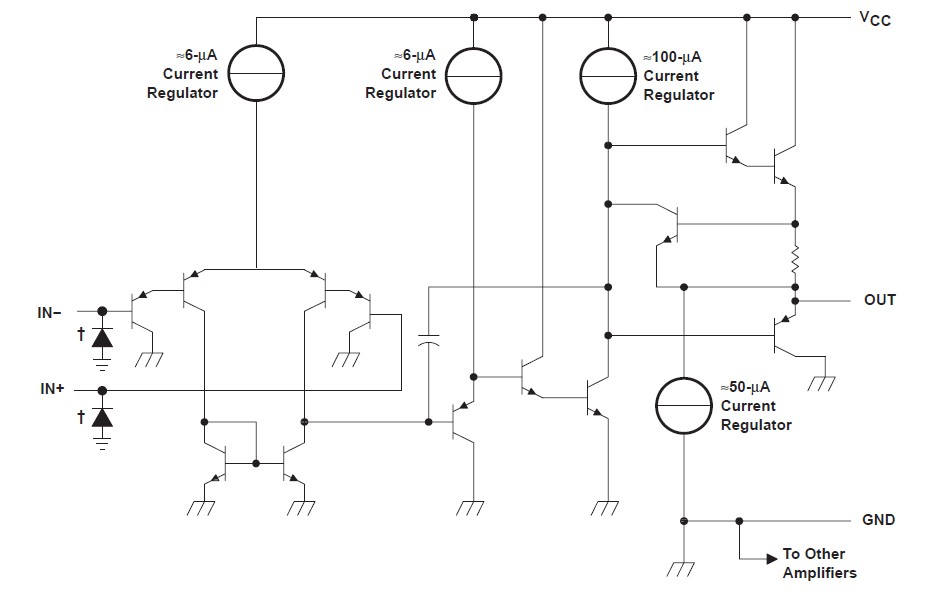

LM324N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LM324N
LM324N

Texas Instruments

Operational Amplifiers - Op Amps Quad

Data Sheet

0-1: $0.29
1-25: $0.20
25-100: $0.17
100-250: $0.11
LM324N/NOPB
LM324N/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps LOW PWR QUAD OP AMP

Data Sheet

0-1: $0.63
1-25: $0.50
25-100: $0.44
100-250: $0.39
LM324NE3
LM324NE3

Texas Instruments

Operational Amplifiers - Op Amps Quad Op Amp

Data Sheet

0-1: $0.33
1-25: $0.22
25-100: $0.18
100-250: $0.15
LM324NE4
LM324NE4

Texas Instruments

Operational Amplifiers - Op Amps Quad General-Purpose Op Amp

Data Sheet

0-1: $0.26
1-25: $0.21
25-100: $0.16
100-250: $0.15
LM324NG
LM324NG

ON Semiconductor

Operational Amplifiers - Op Amps 3-32V Quad 5mV VIO Commercial Temp

Data Sheet

0-1: $0.28
1-25: $0.24
25-100: $0.17
100-500: $0.14
LM324NSR
LM324NSR

Texas Instruments

Operational Amplifiers - Op Amps Quad General-Purpose Op Amp

Data Sheet

0-1: $0.28
1-25: $0.18
25-100: $0.15
100-250: $0.13
LM324NSRE4
LM324NSRE4

Texas Instruments

Operational Amplifiers - Op Amps Quad General-Purpose Op Amp

Data Sheet

0-1: $0.22
1-25: $0.16
25-100: $0.14
100-250: $0.12
LM324NSRG4
LM324NSRG4

Texas Instruments

Operational Amplifiers - Op Amps Quad General-Purpose Op Amp

Data Sheet

0-1: $0.28
1-25: $0.18
25-100: $0.15
100-250: $0.13
