Product Summary

The CC2533F96RHAR is an optimized system-on-chip (SoC) solution for IEEE 802.15.4 based remote-control systems. It enables single-chip remote controls to be built with low bill-of-material cost when used as a flexible SoC. The CC2533F96RHAR also provides a simple path to adding RF4CE capability to a device or target when used in the wireless network processor configuration of the RemoTI RF4CE stack. Robust network nodes can be built with very low total bill-of-material costs. The applications of the CC2533F96RHAR include: (1)ZigBee RF4CE Remote Control Target and Device; (2)2.4-GHz IEEE 802.15.4 Systems Based on TIMAC or SimpliciTI Network Protocol; (3)Consumer Electronics; (4)Electronic Shelf Labeling.

Parametrics

CC2533F96RHAR absolute maximum ratings: (1)Supply voltage: –0.3 to 3.9 V; (2)Voltage on any digital pin: –0.3 to VDD + 0.3, ≤ 3.9 V; (3)Input RF level: 10 dBm; (4)Storage temperature range: –40 to 125 ℃; (5)ESD All pads, according to human-body model, JEDEC STD 22, method A114: 2 kV.

Features

CC2533F96RHAR features: (1)2.4-GHz IEEE 802.15.4 Compliant RF Transceiver; (2)Excellent Receiver Sensitivity and Robustness to Interference; (3)Programmable Output Power Up to 4.5 dBm; (4)Boost-Mode TX at 7 dBm; (5)Very Few External Components; (6)Only a Single Crystal Needed for Asynchronous Networks; (7)Space-Saving 6-mm × 6-mm QFN40 Package; (8)Suitable for Systems Targeting Compliance With Worldwide Radio-Frequency Regulations: ETSI EN 300 328 and EN 300 440 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T-66 (Japan); (9)Pin- and Software-Compatible With the CC2530Fxxx Series.

Diagrams

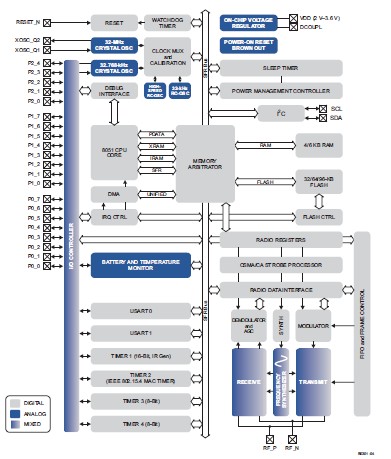

CC2533F96RHAR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CC2533F96RHAR
CC2533F96RHAR
Texas Instruments
RF Microcontrollers (MCU) System-on-Chip Sol
Data Sheet
0-2020: $2.08
2020-2500: $2.08
