Product Summary

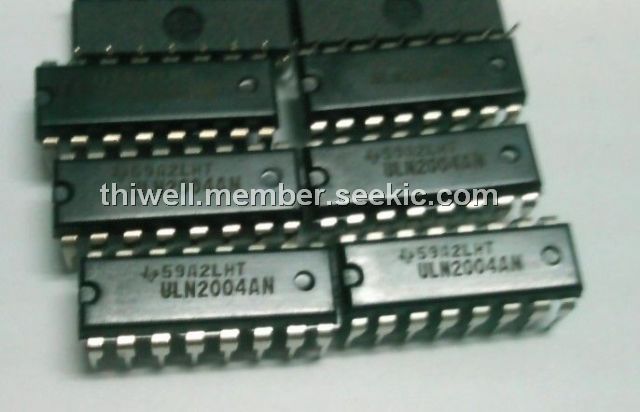

The ULN2004AN is a high-voltage, high-current Darlington transistor. It consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. Applications of the ULN2004AN include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.

Parametrics

ULN2004AN absolute maxing ratings: (1)Collector-emitter voltage: 50 V; (2)Clamp diode reverse voltage: 50 V; (3)Input voltage, VI: 30 V; (4)Peak collector current: 500 mA; (5)Output clamp current, IOK: 500 mA; (6)Total emitter-terminal current: -2.5 A; (7)Package thermal impedance, θJC: D package: 36℃/W; N package: 54℃/W; (8)Operating virtual junction temperature, TJ: 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Storage temperature range, Tstg: -65℃ to 15℃.

Features

ULN2004AN features: (1)500-mA-Rated Collector Current(Single Output); (2)High-Voltage Outputs: 50 V; (3)Output Clamp Diodes; (4)Inputs Compatible With Various Types of Logic; (5)Relay-Driver Applications.

Diagrams

ULN2004AN diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ULN2004AN
ULN2004AN
Texas Instruments
Peripheral Drivers & Components (PCIs) Hi V & A Darlington
Data Sheet
0-1: $0.30
1-25: $0.24
25-100: $0.18
100-250: $0.18
ULN2004ANE4
ULN2004ANE4
Texas Instruments
Peripheral Drivers & Components (PCIs) Hi V & A Darlington
Data Sheet
0-1: $0.40
1-25: $0.24
25-100: $0.21
100-250: $0.18
ULN2004ANSR
ULN2004ANSR
Texas Instruments
Peripheral Drivers & Components (PCIs) Hi-Vltg Hi-Crnt Darl Transistor Arrays
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.21
100-250: $0.19
ULN2004ANSRG4
ULN2004ANSRG4
Texas Instruments
Peripheral Drivers & Components (PCIs) Hi-Vltg Hi-Crnt Darl Transistor Arrays
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.21
100-250: $0.19
