UC3842AD8G4

current mode PWM controller, 8SOIC, 0.5mA, 1.2V, 500kHz, 1W, 5μJ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.10~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.10~3.00

PartNumber:: UC3842AD8G4

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Tom's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-24

From Other Seller

Part Number:UC3842AD8G4
US $1.10 - 3.00
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

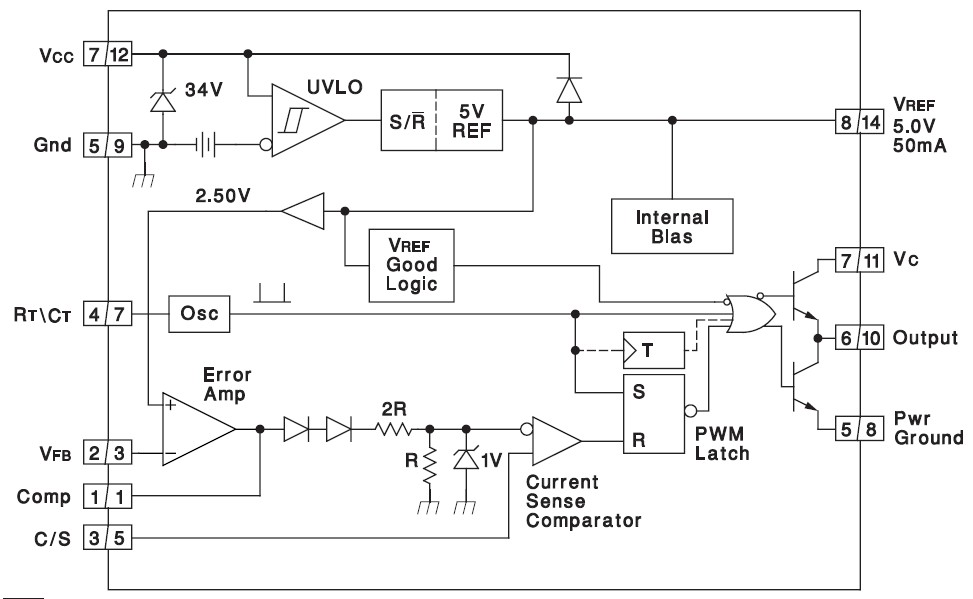

The UC3842AD8G4 is a current mode PWM controller. Providing the necessary features to control current mode switched mode power supplies, the UC3842AD8G4 has the following improved features. Start up current is guaranteed to be less than 0.5mA. Oscillator discharge of the UC3842AD8G4 is trimmed to 8.3mA. During under voltage lockout, the output stage can sink at least 10mA at less than 1.2V for VCC over 5V.

Parametrics

UC3842AD8G4 absolute maximum ratings: (1)Supply Voltage (Low Impedance Source): 30V; (2)Output Current: ±1A; (3)Output Energy (Capacitive Load): 5μJ; (4)Analog Inputs (Pins 2, 3): -0.3V to +6.3V; (5)Error Amp Output Sink Current: 10mA; (6)Power Dissipation at TA ≤ 25℃ (DIL-8): 1W; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 Seconds): 300℃.

Features

UC3842AD8G4 features: (1)Optimized for Off-line and DC to DC Converters; (2)Low Start Up Current (<0.5mA); (3)Trimmed Oscillator Discharge Current; (4)Automatic Feed Forward Compensation; (5)Pulse-by-Pulse Current Limiting; (6)Enhanced Load Response Characteristics; (7)Under-Voltage Lockout With Hysteresis; (8)Double Pulse Suppression; (9)High Current Totem Pole Output; (10)Internally Trimmed Bandgap Reference; (11)500kHz Operation; (12)Low RO Error Amp.
