Product Summary
The SN75LVDS82DGG is a FlatLink receiver. It contains four serial-in 7-bit parallel-out shift registers, a 7× clock synthesizer, and five low-voltage differential signaling (LVDS) line receivers in a single integrated circuit. These functions allow receipt of synchronous data from a compatible transmitter, such as the SN75LVDS82DGG, over five balanced-pair conductors and expansion to 28 bits of single-ended low-voltage TTL (LVTTL) synchronous data at a lower transfer rate.
Parametrics
SN75LVDS82DGG absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 4 V; (2)Output voltage range, VO (Dxx terminals): –0.5 V to VCC + 0.5 V; (3)Input voltage range, VI (any terminal except SHTDN): –0.5 V to VCC + 0.5 V; (4)Input voltage range, VI (SHTDN): –0.5 V to 5.5 V; (5)Operating temperature range, TA: 0 to 70℃; (6)Storage temperature range, Tstg: –65 to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
SN75LVDS82DGG features: (1)4:28 Data Channel Expansion at up to 227.5 Million Bytes per Second (Mbytes/s) Throughput; (2)Suited for SVGA, XGA, or SXGA Display Data Transmission From Controller to Display With Very Low EMI; (3)4 Data Channels and Clock Low-Voltage Differential Channels In and 28 Data and Clock Low-Voltage TTL Channels Out; (4)Operates From a Single 3.3-V Supply With 250 mW Typ; (5)5-V Tolerant SHTDN Input; (6)Falling Clock-Edge-Triggered Outputs; (7)Packaged in Thin Shrink Small-Outline Package With 20-Mil Terminal Pitch; (8)Consumes Less Than 1 mW When Disabled; (9)Wide Phase-Lock Input Frequency Range: 31 MHz to 68 MHz; (10)No External Components Required for PLL; (11)Inputs Meet or Exceed the Requirements of the ANSI EIA/TIA-644 Standard; (12)Improved Replacement for the National DS90C582.

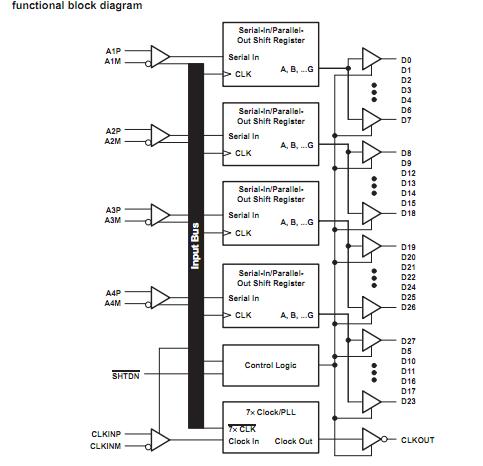

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN75LVDS82DGG |
Texas Instruments |
Bus Receivers FLATLINK RECEIVER |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS82DGGG4 |
Texas Instruments |
Bus Receivers FLATLINK RECEIVER |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS82DGGRG4 |
Texas Instruments |
Bus Receivers FLATLINK RECEIVER |
Data Sheet |
|
|
||||||||||||
|
SN75LVDS82DGGR |
Texas Instruments |
Bus Receivers Flatlink |
Data Sheet |
|
|
||||||||||||
