Product Summary

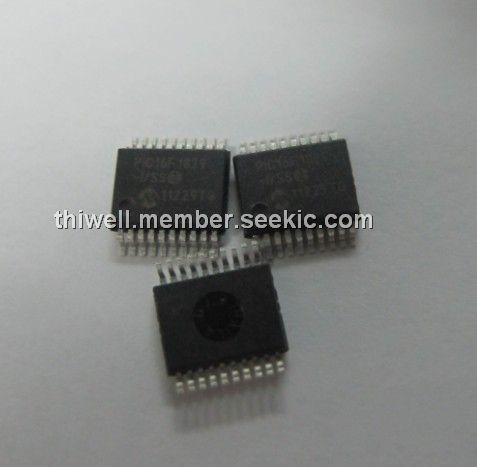

The PIC16F1829-I/SS is a 14/20-Pin Flash Microcontroller with nanoWatt XLP Technology. The PIC16F1829-I/SS is described within this data sheet. The device is available in 14/20 pin packages.
Parametrics
PIC16F1829-I/SS absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on VDD with respect to VSS: -0.3V to +4.0V; (5)Voltage on MCLR with respect to Vss: -0.3V to +9.0V; (6)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (7)Total power dissipation: 800 mW; (8)Maximum current out of VSS pin, -40℃ ≤TA ≤ +85℃ for industrial: 85 mA; (9)Maximum current out of VSS pin, -40℃ ≤ TA ≤ +125℃ for extended: 35 mA; (10)Maximum current into VDD pin, -40℃ ≤ TA ≤ +85℃ for industrial: 800 mA; (11)Maximum current into VDD pin, -40℃ ≤ TA ≤ +125℃ for extended: 30 mA; (12)Clamp current, IK (VPIN < 0 or VPIN > VDD): ±20 mA; (13)Maximum output current sunk by any I/O pin: 25 mA; (14)Maximum output current sourced by any I/O pin: 25 mA.
Features
PIC16F1829-I/SS features: (1)1.8V-5.5V Operation; (2)Self-Programmable under Software Control; (3)Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (4)Programmable Brown-out Reset (BOR); (5)Extended Watchdog Timer (WDT); (6)In-Circuit Serial Programming? (ICSP?) via two pins; (7)In-Circuit Debug (ICD) via Two Pins; (8)Enhanced Low-Voltage Programming (LVP); (9)Programmable Code Protection; (10)Power-Saving Sleep mode.
Diagrams
<IMG border=0 alt="PIC16F1829-I/SS block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012710213715779.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F1829-I/SS |
Microchip Technology |
8-bit Microcontrollers (MCU) 14KB FL 1KBRAM 32MHz 18I/0 Enhanced Mid |
Data Sheet |
|
|
||||||||||||
