Product Summary

The LP2951CMX-3.3 is a micropower voltage regulator with very low quiescent current (75µA typ.) and very low dropout voltage (typ. 40mV at light loads and 380mV at 100mA). The LP2951CMX-3.3 is ideally suited for use in battery-powered systems. Furthermore, the quiescent current of the LP2951CMX-3.3 increases only slightly in dropout, prolonging battery life.

Parametrics

LP2951CMX-3.3 absolute maximum ratings: (1)Input Supply Voltage: -0.3 to +30V; (2)FEEDBACK Input Voltage: -1.5 to +30V; (3)Junction Temperature (TJ): +150℃; (4)Ambient Storage Temperature: -65 to +150℃; (5)Soldering Dwell Time, Temperature: 219℃; (6)ESD Rating, Human Body Model: 2500V.

Features

LP2951CMX-3.3 features: (1)5V, 3V, and 3.3V versions available; (2)High accuracy output voltage; (3)Guaranteed 100mA output current; (4)Extremely low quiescent current; (5)Low dropout voltage; (6)Extremely tight load and line regulation; (7)Very low temperature coefficient; (8)Use as Regulator or Reference; (9)Needs minimum capacitance for stability; (10)Current and Thermal Limiting; (11)Stable with low-ESR output capacitors (10mΩ to 6Ω).

Diagrams

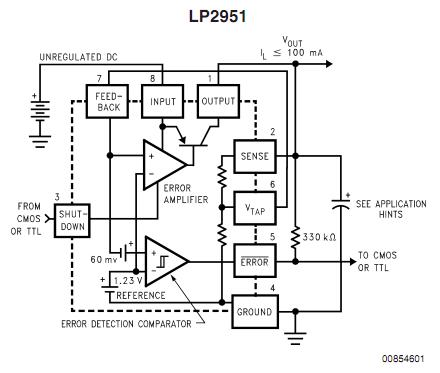

LP2951CMX-3.3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LP2951CMX-3.3
LP2951CMX-3.3
National Semiconductor (TI)
Low Dropout (LDO) Regulators
Data Sheet
0-2500: $0.21
2500-5000: $0.19
5000-10000: $0.18
