Product Summary

The HB100 Microwave Motion Sensor Module is a X-Band Bi-Static Doppler transceiver module. Its built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, make it ideal for OEM usage in motion detection equipment. The applications of the HB100 include: Microwave-PIR motion detector, Speed measurement, Lighting control.

Parametrics

HB100 specifications: (1)Frequency Setting: 10.520 to 10.530 GHz; (2)Radiated Power (EIRP): 12 to 20 dBm; (3)Spurious Emission: -7.3 dBm; (4)Settling Time: 3 to 6 μSec; (5)Received Signal Strength: 200 μVp-p; (6)Noise: 5 μVrms; (7)Antenna Beam-width (3 dB) - Azimuth: 80 °; (8)Antenna Beam-width (3 dB) - Elevation: 40 °; (9)Supply Voltage: 4.75 to 5.25 VDC; (10)Current Consumption: 30 to 40 mA; (11)Pulse Repetition Frequency: 2 KHz; (12)Pulse Width: 10 μSec; (13)Operating Temperature: -15 to 55 ℃.

Features

HB100 features: (1)Low current consumption; (2)CW or Pulse operation; (3)Flat profile; (4)Long detection range.

Diagrams

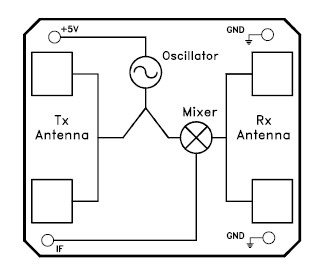

HB100 block diagram
