Product Summary

The BQ20Z70 is a SBS-compliant gas gauge IC, incorporating patented Impedance Track technology, is designed for battery-pack or in-system installation. The BQ20Z70 measures and maintains an accurate record of available charge in Li-ion or Li-polymer batteries using its integrated high-performance analog peripherals. The BQ20Z70 monitors capacity change, battery impedance, open-circuit voltage, and other critical parameters of the battery pack, and reports the information to the system host controller over a serial-communication bus. It is designed to work with the BQ20Z70 analog front-end (AFE) protection IC to maximize functionality and safety, and minimize component count and cost in smart battery circuits. The applications of the BQ20Z70 include Notebook PCs, Medical and Test Equipment and Portable Instrumentation.

Parametrics

BQ20Z70 absolute maximum ratings: (1)VCC relative to VSS, Supply voltage range on VCC pin: – 0.3 V to 2.75 V; (2)V (IOD) relative to VSS, XALERT, PFIN , SAFE, SMBD, SMBC, SDATA, SCLK: – 0.3 V to 6.0 V; (3)VI relative to VSS TS2, TS1, CLKOUT, PRES , SRP, SRN, MRST, VCELL+,VCELL-:–0.3 V to V CC + 0.3 V; (4)TA, Operating free-air temperature range: – 40 to 85℃; (5)Tstg, Storage temperature range: – 65 to 150℃.

Features

BQ20Z70 features: (1)Next Generation Patented Impedance Track Technology accurately Measures Available Charge in Li-Ion and Li-Polymer Batteries; (2)Better than 1% Error Over Lifetime of the Battery; (3)Instant Accuracy – No Learning Cycle Required; (4)Supports the Smart Battery Specification SBS V1.1; (5)Powerful 8-Bit RISC CPU With Ultra-Low Power Modes; (6)Works With the TI bq29330 Analog Front-End (AFE) Protection IC to Provide Complete Pack Electronics Solution; (7)Full Array of Programmable Protection Features: Voltage, Current and Temperature; (8)Fully Integrated High Accurate Clock; (9)Flexible Configuration for 2 to 4 Series Li-Ion and Li-Polymer Cells; (10)Integrated Field Programmable FLASH Memory Eliminates the Need for External Configuration Memory; (11)Smart Battery Charger Control Feature; (12)Two 16-Bit Delta-Sigma Converter: Accurate Voltage and Temperature Measurements; Integrating Coloumb Counter for Charge Flow; (13)Better Than 0.65 nVh of Resolution; (14)Self-Calibrating; (15)Supports SHA-1 Authentication; (16)20-Pin TSSOP (PW).

Diagrams

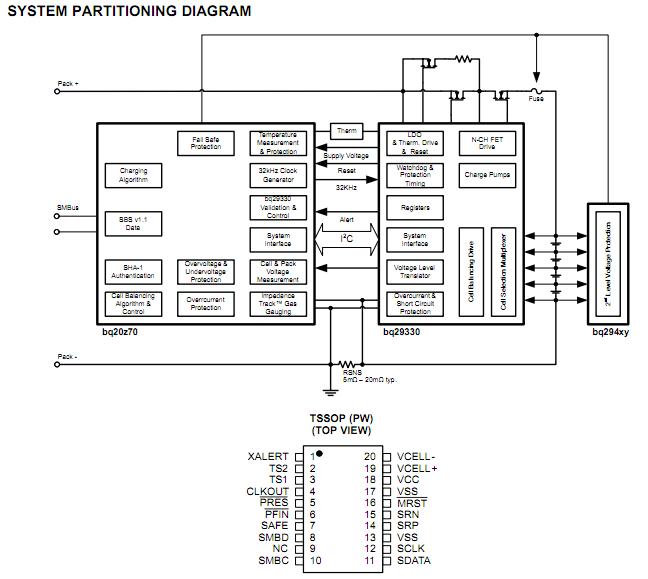

BQ20Z70 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
bq20z70
bq20z70

Other


Data Sheet

Negotiable
BQ20Z70EVM-001
BQ20Z70EVM-001

Texas Instruments

Power Management IC Development Tools BQ20Z70 EVAL MOD

Data Sheet

0-1: $67.01
BQ20Z70PW
BQ20Z70PW

Texas Instruments

Battery Management SBS 1.1 Comp Gas Gauge Enabled

Data Sheet

0-1: $5.55
1-25: $4.68
25-100: $3.51
100-250: $3.44
BQ20Z70PWG4
BQ20Z70PWG4

Texas Instruments

Battery Management SBS 1.1 Comp Gas Gauge Enabled

Data Sheet

0-1: $5.55
1-25: $4.54
25-100: $3.51
100-250: $3.35
BQ20Z70PWR
BQ20Z70PWR

Texas Instruments

Battery Management SBS 1.1 Comp Gas Gauge Enabled

Data Sheet

0-1570: $2.68
1570-2000: $2.62
BQ20Z70PWRG4
BQ20Z70PWRG4

Texas Instruments

Battery Management SBS 1.1 Comp Gas Gauge Enabled

Data Sheet

0-1570: $2.68
1570-2000: $2.61
BQ20Z70PW-V110
BQ20Z70PW-V110

Texas Instruments

Battery Management SBS 1.1 Compl Gas Gauge Enabled

Data Sheet

0-1: $5.05
1-25: $4.68
25-100: $3.40
100-250: $3.28
BQ20Z70PW-V110G4
BQ20Z70PW-V110G4

Texas Instruments

Battery Management SBS 1.1 Compl Gas Gauge Enabled

Data Sheet

0-1: $5.05
1-25: $4.68
25-100: $3.40
100-250: $3.28
